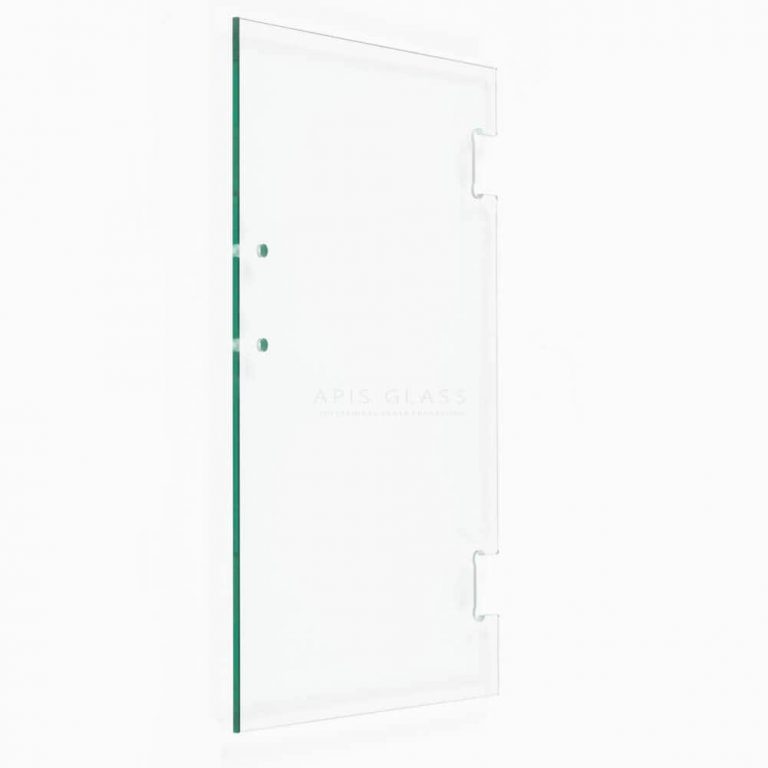

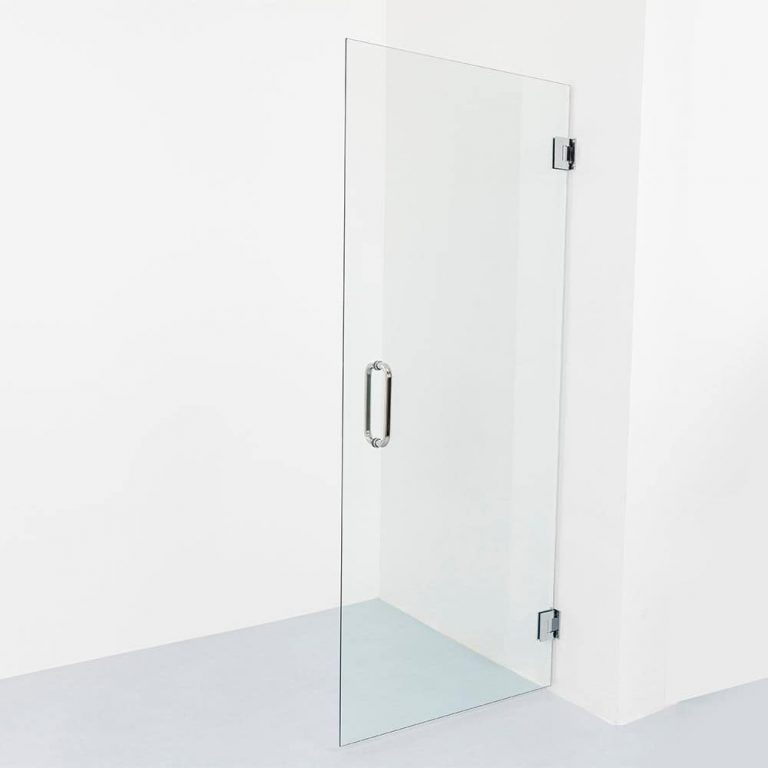

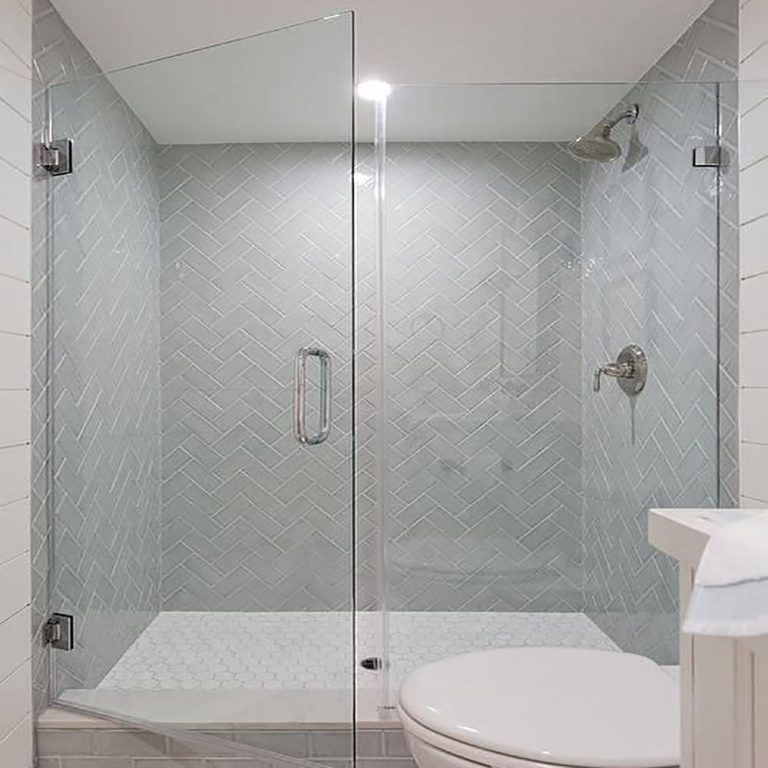

Hinged Tempered Glass Swing Door

Thinkness:

Glass:

Minimum Order Quantity:



3/8″ (10mm)

Clear, Starphire

5pcs

Hinged Tempered Glass Swing Door

Thinkness:

Glass:

Minimum Order Quantity:



3/8″ (10mm)

Clear, Starphire

5pcs

Specification

Glass: Float Tempered Glass
Thinkness: (3/8″)10mm ±0.3
Length/Width Tolerance: ±1mm
Diagonal tolerance: 2mm
Edge: Flat Polished
Hole Diameter: (1/2″)Ø13mm ±0.5
Hole Distance: (8″) 203.2mm ±0.5
Cutouts: For Geneva/Pinnicle,or Vienna
Logo Color: Frost or White
Tempering Particle Counts: 40-100pcs / 50mmx50mm
Overall Bow: 0.10%
Corner: 2x2mm Safety Coner
Standard: ANSI Z 97.1-2015
Certificates: SGCC

Product Details

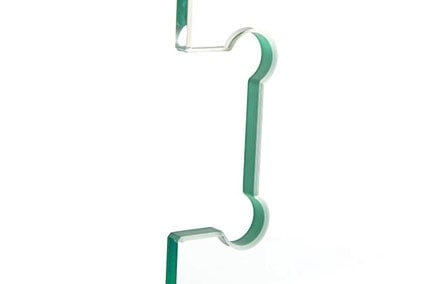

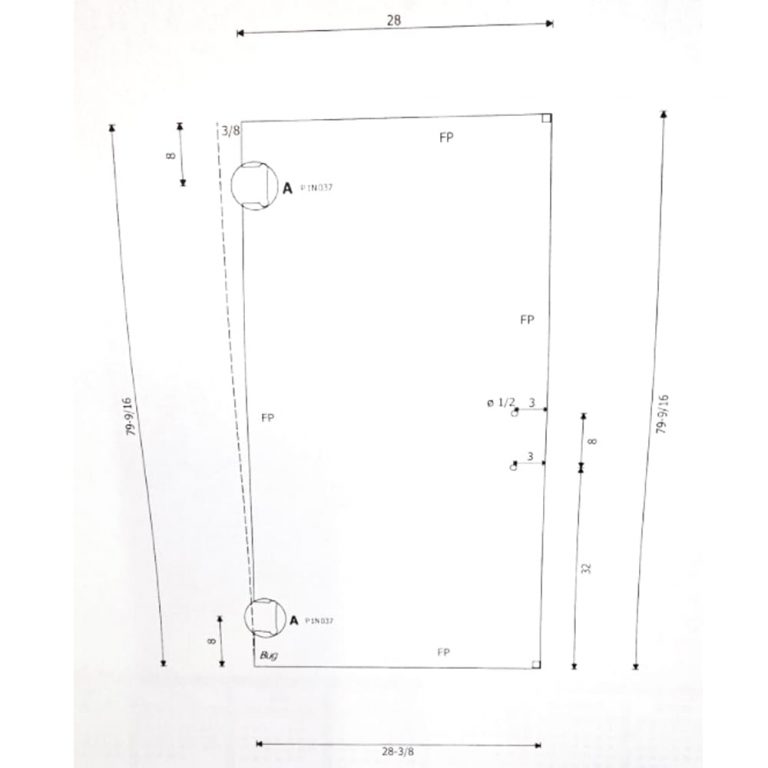

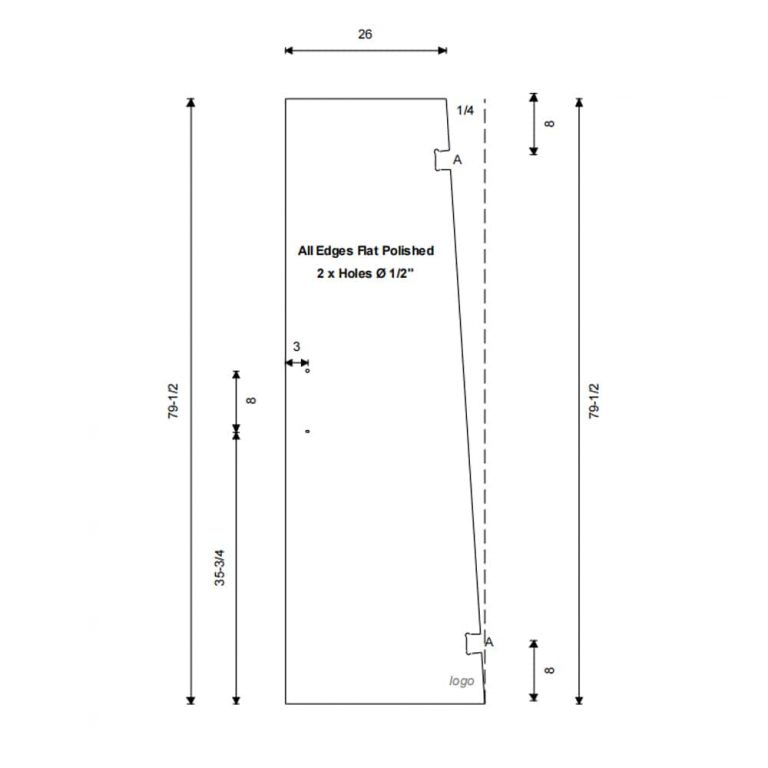

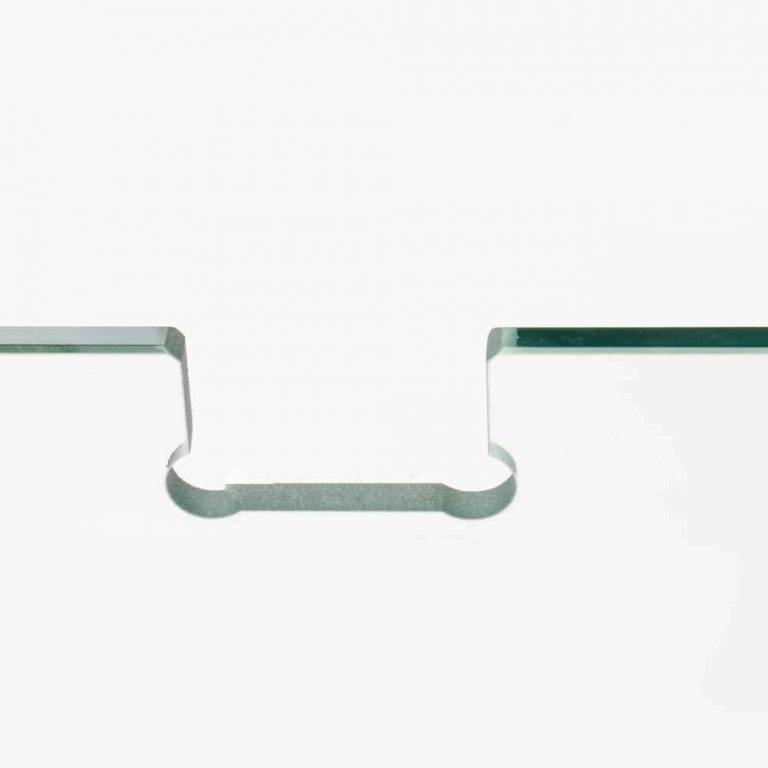

Cutouts

Can be processed to adapt to 90x55mm Standard Duty Hinge and 100x59mm Heavy Duty Hinge.

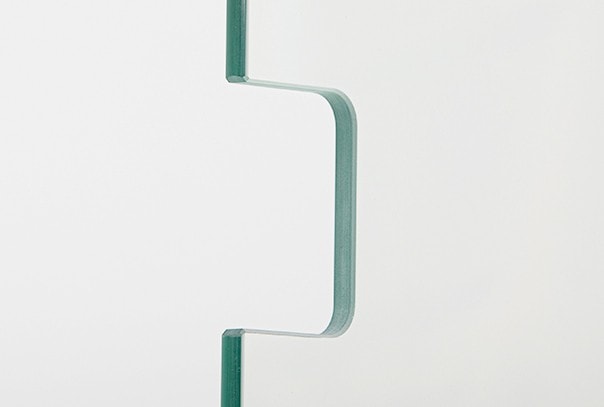

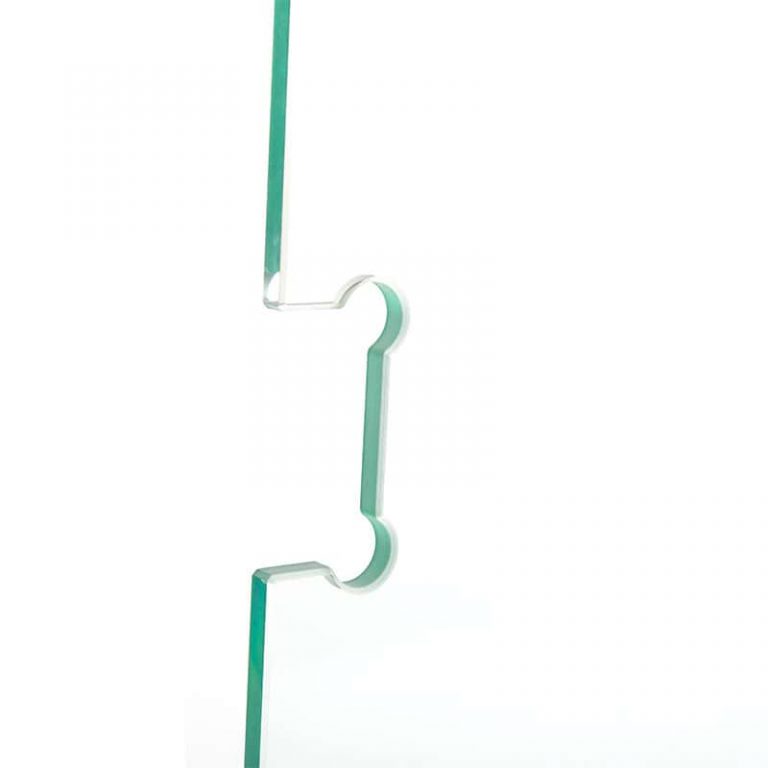

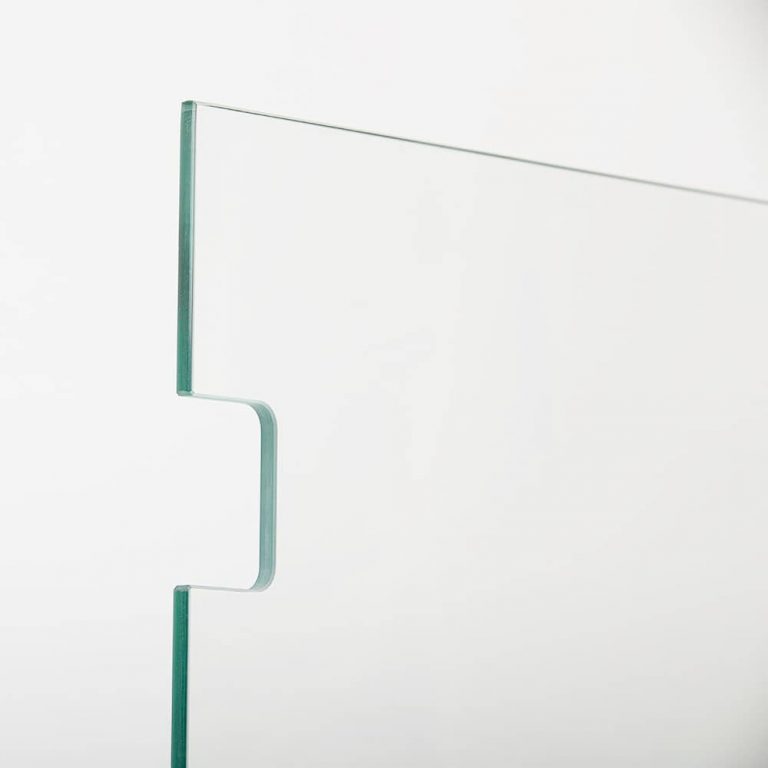

Cutouts

Any shape can be produced depending on the different hinges.

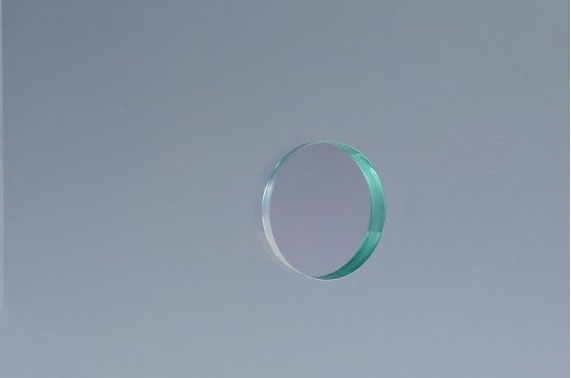

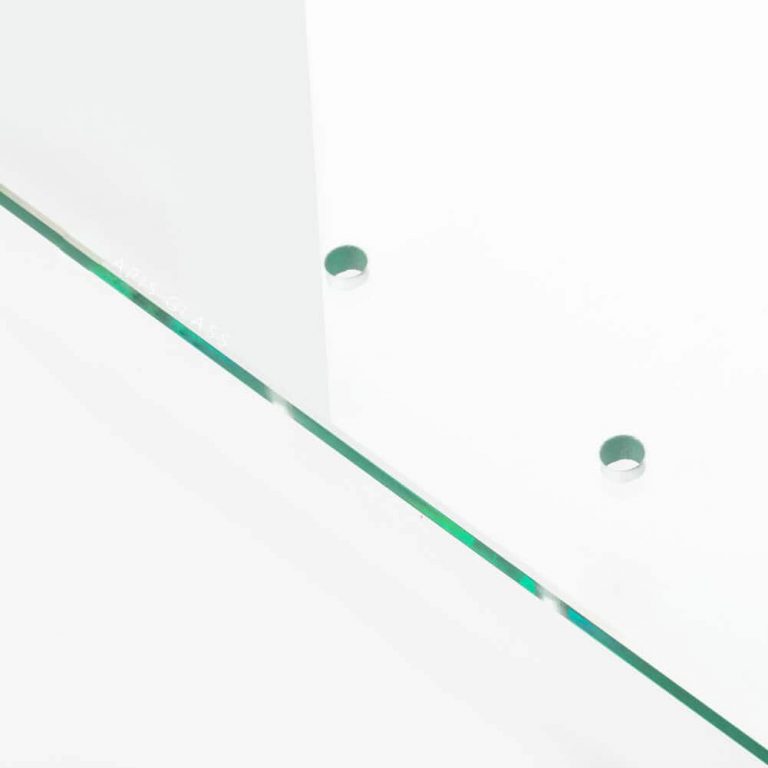

Hole

The tolerance of diameter and distance can be controlled within ±0.5mm.

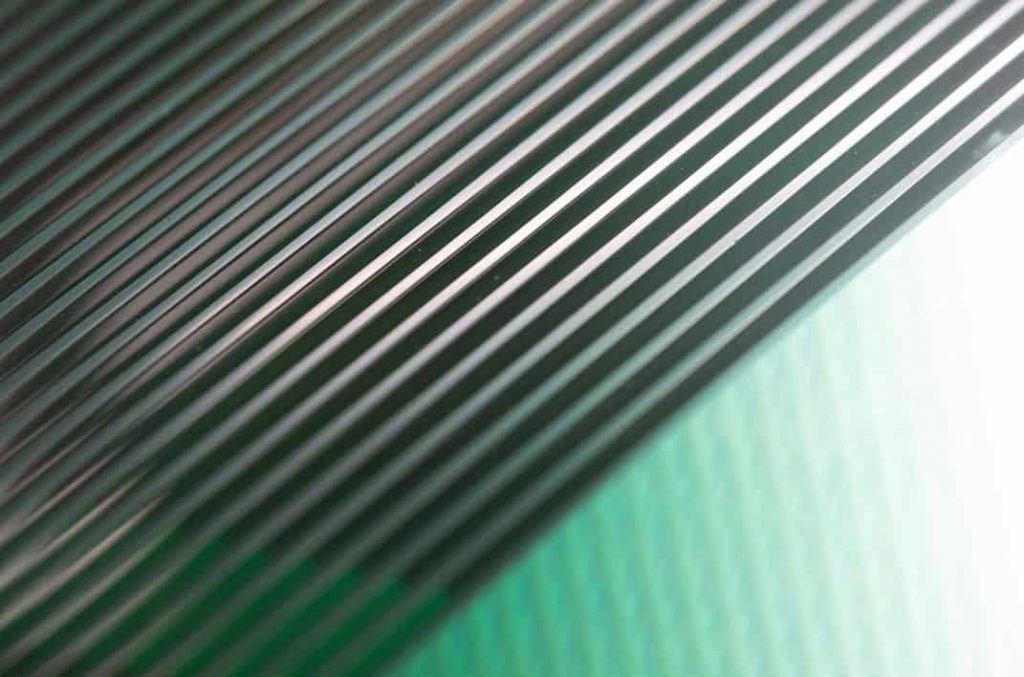

Edgework

Flat polished edge , with1mm uniform chamfer edge. very smooth touch.

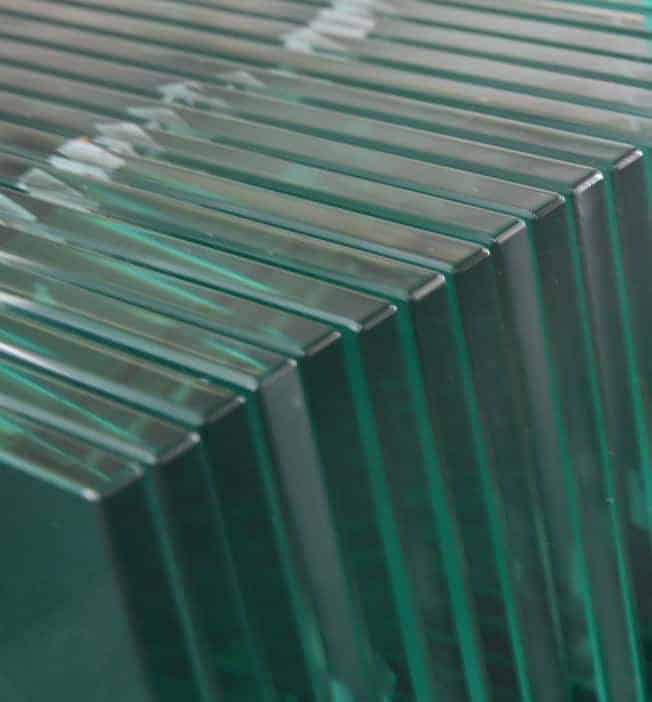

Safety Corner

Glass with safety corners to avoid scratching people with sharp angles when using glass door.

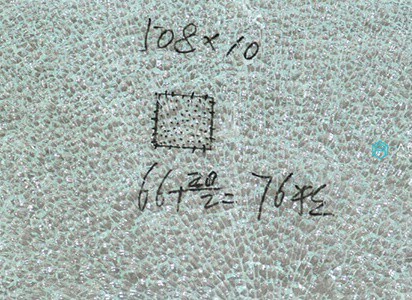

Tempering Fragments

ANSI Z97 tempering standard is no less than 40 pcs, and we can control it to a more reasonable range of 40-100pcs.

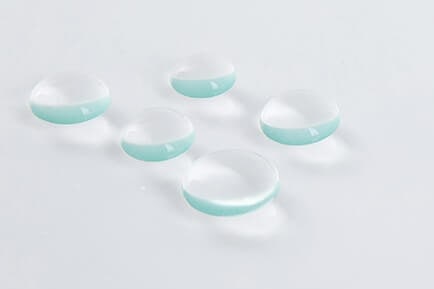

Nano Coating

We use Enduroshield easy to clean liquid brand from Australia. It has a warranty of 5 years.

Logo on Glass

The tempered logo can be printed with your company name and our valid SGCC certificate code.

Packaging Details

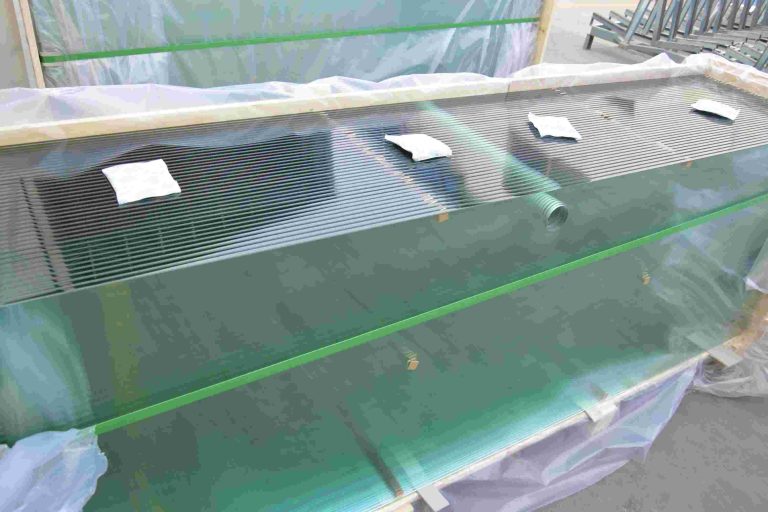

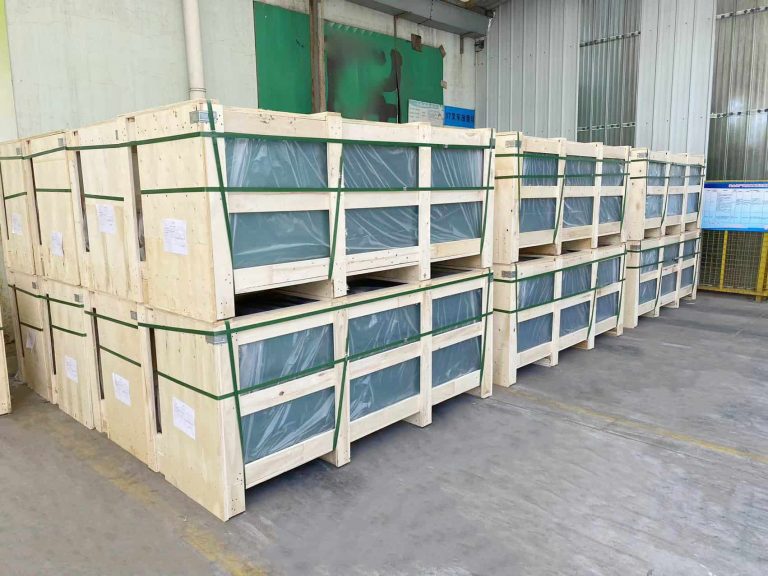

Plywood Crate Packing

1.The glass is separated by corks pad to prevent scratches;
2.Desiccants are placed in the plywood box to prevent the glass from becoming moldy;
3.The plywood crates have a strong structure and can be stacked to save storage space.

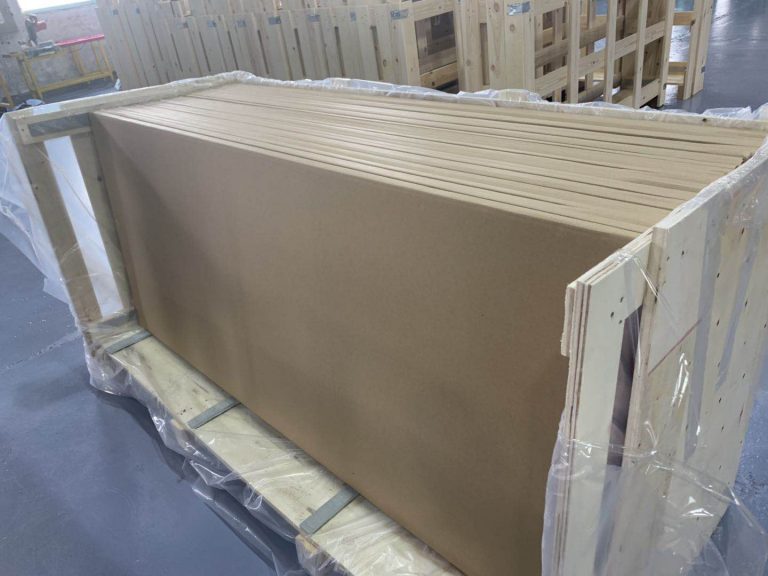

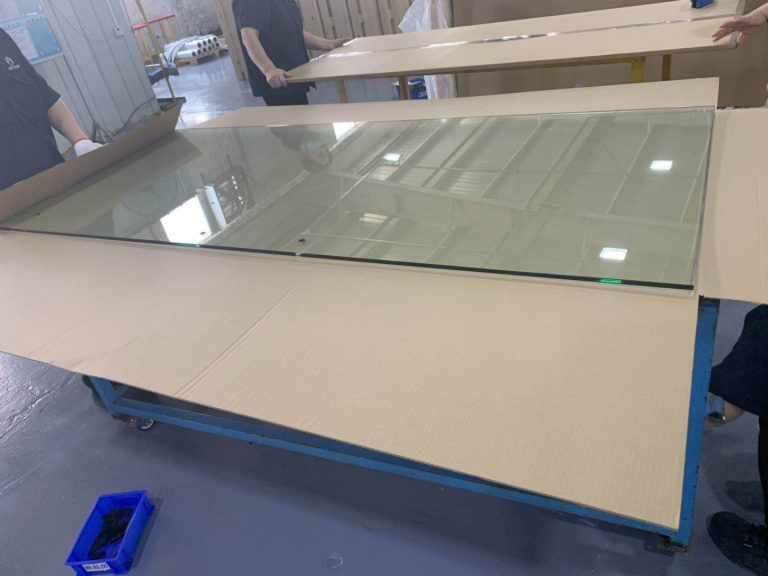

Carton Box Packing

1, Each piece of glass is individually packed in a carton;
2, The customer’s company logo can be printed on the carton for free to help promote the customer’s brand;
3, The cartons are packed into plywood crates for easy storage and transportation.

Warranty

When our clients first start doing business with us, we make a guarantee on our quality:

* If you receive goods with damaged packaging or broken glass, Apis commits to either deducting the money or providing a free replacement in your next order.

* If you find the hardware and glass do not match when installation, Apis will replace the products for you free of charge.

* If your customer’s shower door accessories need repair or replacement in future, we can provide them.

How to Order

1 You Select products

2 Produce Glass & Packing by Apis

3 Arrange Shipping by Apis

6 You Unload in Warehouse

5 Land Transportation by Apis

4 Customs Clearance & Duty by Apis

1 You Select products

2 Produce Glass & Packing by Apis

3 Arrange Shipping by Apis

4 Customs Clearance & Duty by Apis

5 Land Transportation by Apis

6 You Unload in Warehouse
